Spare Parts >GYALUS16K90B-H07

Spare Parts

GYALUS16K90B-H07 EDP:503986

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand L
Stock
Unit of Length M

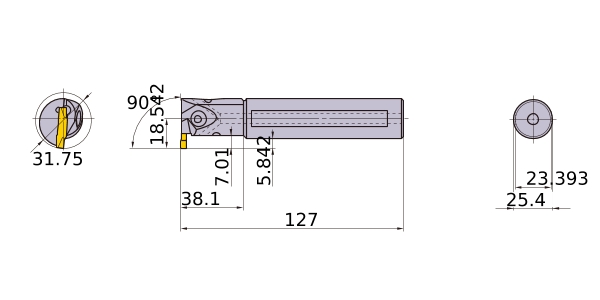

DMIN 31.75
DCON 25.4
LF 127
CDX 7.01
LDRED 38.1
WF 18.542
H 23.393
CW 4.75
WF2 5.842
2D Model (DXF)
CAD data name Download
GYALUS16K90B-H07
CAD
