IMX10-A0500N199L43C EDP:827411

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock
Unit of Length M

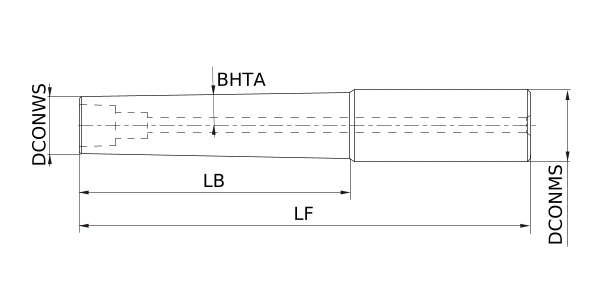

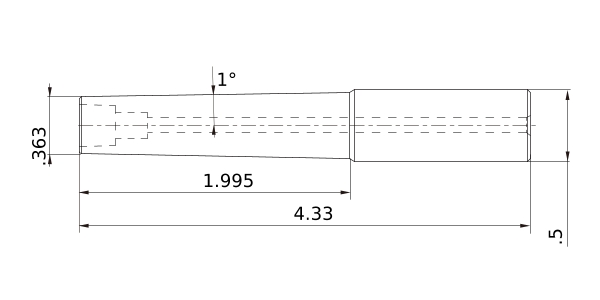

DCONWS 9.22
DCONMS 12.7
BHTA 1°
LF 109.982
LB 50.673
3D Detail Model (STP,STL)
CAD data name Download
IMX10-A0500N199L43C
