Spare Parts >SCU12M10S220L

Spare Parts

SCU12M10S220L EDP:10533277

Product Information

The actual product may differ from the displayed image.

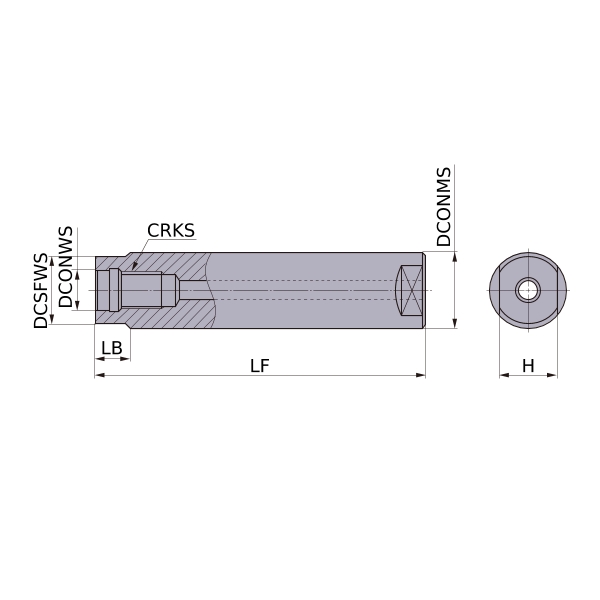

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Stock

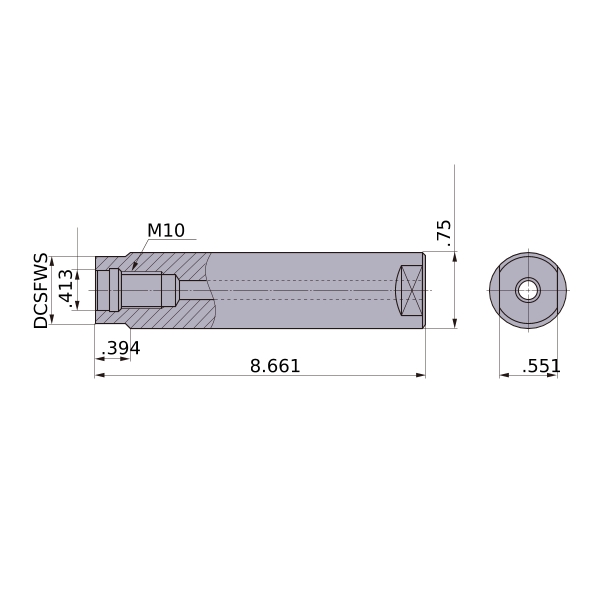

Unit of Length I
DCONWS .413
DCONMS .75
BD .728
LF 8.661
LB .394
H .551
WT 0.4
CRKS M10
2D Model (DXF)
CAD data name Download
SCU12M10S220L
CAD
