Threading

TTAH_INCH


TTAHR-082 EDP:337332

Product Information

  • For gang type tool posts.
  • High rigidity due to desigh of vertical insert.
  • Screw-on type.

The actual product may differ from the displayed image.

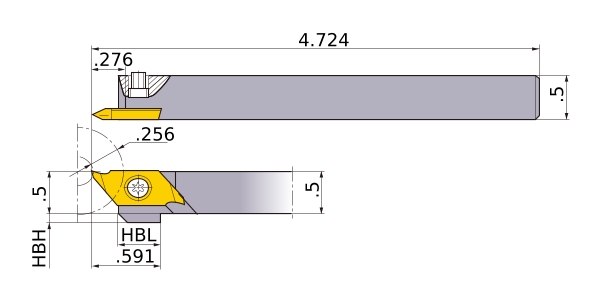

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI TTAHR082BX
Sales unit 1
Hand R
Stock
Unit of Length I
B .5
LF 4.724
LH .591
CDX .276
H .5
HF .5
S10 .256
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
TTAHR-082
CAD
