Threading >MMTI_INCH >MMTIR163-1.15-1.5-C

Threading

MMTI_INCH


MMTIR163-1.15-1.5-C EDP:542045

Product Information

  • Available with a wiper cutting edge to provide a precise thread geometry.

The actual product may differ from the displayed image.

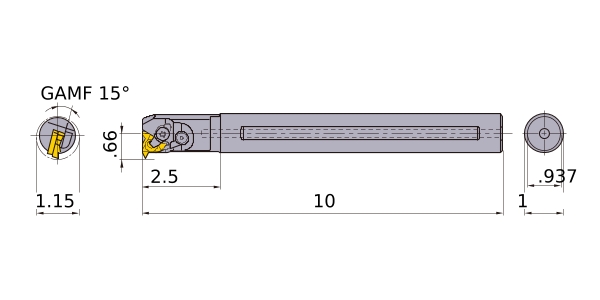

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I
DMIN 1.15
DCON 1
LF 10
LDRED 2.5
WF .66
H .937
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
MMTIR163-1_15-1_5-C
CAD
