Threading

S-SL5N_INCH
（F Type Boring Bar）

S-SL5NR12 EDP:104455

Product Information

  • Screw-on type
  • Usable for various applications.

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Hand R
Stock
Unit of Length I

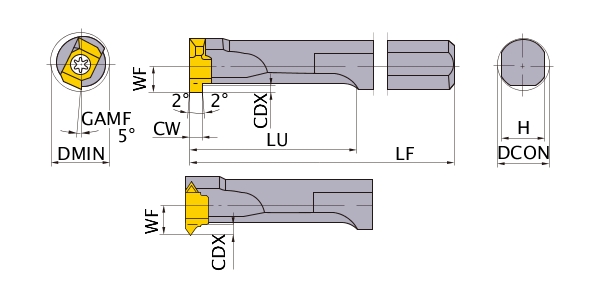

DMIN .902
DCON .75
LF 10
LU 4
CDX .118
WF .438
H .7
CW .094
Peripheral effective cutting edge count: ZEFP 1
2D Model (DXF)
CAD data name Download
S-SL5NR12
