Turning Insert >CNMG543MS

Turning Insert

CNMG543MS EDP:101090

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade US735
Order Number CNMG160612-MS
Sales unit 10
Hand N
Stock
Unit of Length I

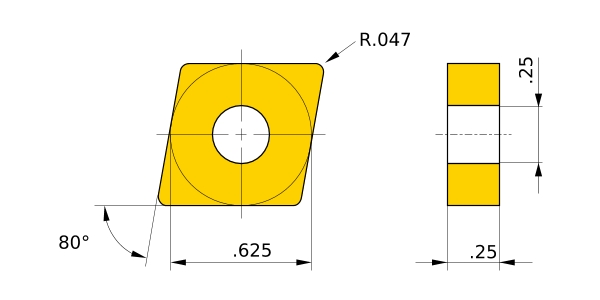

D1 .25
IC .625
EPSR 80°
S .25
RE .047
Breaker MS
Classification of Grades
Coated・Carbide MP9005
Coated・Carbide MP9015
Coated・Carbide MP9025
Non-coated・Carbide MT9015
Non-coated・Carbide RT9010
3D Detail Model (STP,STL)
CAD data name Download
CN160612N
CAD
