Turning Insert >CCGT09T304MR-SN
CCGT09T304MR-SN EDP:10540947
The actual product may differ from the displayed image.

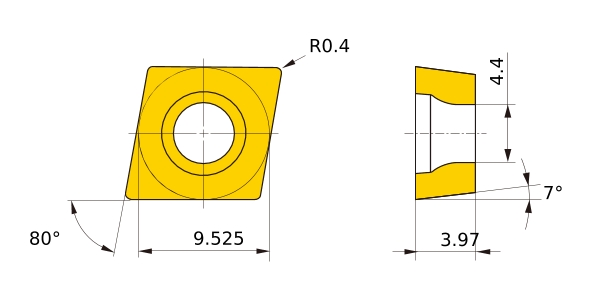

For details, please check the dimensions below.
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | MS6015 |
| ANSI | CCGT32.51MRSN |
| Sales unit | 10 |
| Hand | R |
| Stock |
|
| Unit of Length | M |
| D1 | 4.4 |
| IC | 9.525 |
| EPSR | 80° |
| GAN | 20° |
| AN | 7° |
| LBB | 1.5 |
| LE | 5 |
| S | 3.97 |
| RE | 0.4 |
| Breaker | R-SN |
| Classification of Grades | ||
|---|---|---|
| Coated・Carbide | MS7025 |
|
| Coated・Carbide | MS9025 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
External Holder
Internal Holder
