Turning Insert >NP-SNGA120412GA2

Turning Insert

NP-SNGA120412GA2 EDP:10518205

Product Information

The actual product may differ from the displayed image.

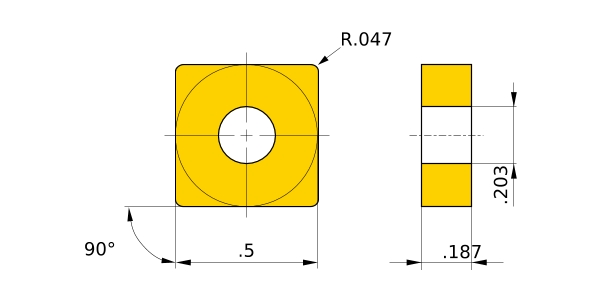

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8120
ANSI NP-SNGA433-GA2
Sales unit 1
Hand N
Stock
Unit of Length M
D1 5.16
IC 12.7
EPSR 90°
LE 2.5
S 4.76
RE 1.2
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8130
CBN・Coated CBN BC8220
CBN・CBN MB8120
3D Detail Model (STP,STL)
CAD data name Download
SN120412N
CAD
