Turning Insert >NP-VNGA160412GA2

Turning Insert

NP-VNGA160412GA2 EDP:10518335

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Coated CBN
Grade BC8120
ANSI NP-VNGA333-GA2
Sales unit 1
Hand N
Stock
Unit of Length M

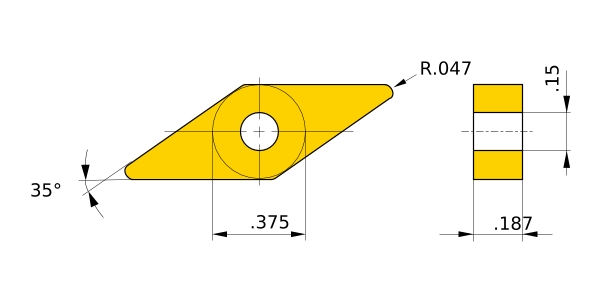

D1 3.81
IC 9.525
EPSR 35°
LE 1.5
S 4.76
RE 1.2
Breaker flat_top
Classification of Grades
CBN・Coated CBN BC8130
CBN・Coated CBN BC8220
CBN・CBN MB8120
3D Detail Model (STP,STL)
CAD data name Download
VN160412N
