Turning Insert >TCMT1.81.52MS

Turning Insert

TCMT1.81.52MS EDP:10610275

Product Information

The actual product may differ from the displayed image.

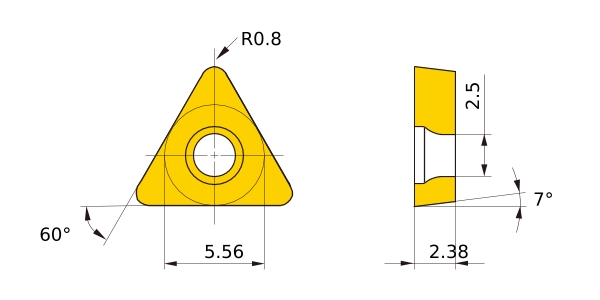

For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MP9025
Order Number TCMT090208-MS
Sales unit 10
Hand N
Stock
Unit of Length I
D1 .098
IC .219
EPSR 60°
AN 7°
S .094
RE .031
Breaker MS
Classification of Grades
Coated・Carbide MP9005
Coated・Carbide MP9015
Non-coated・Carbide MT9005
3D Detail Model (STP,STL)
CAD data name Download
TC090208N
