Turning Insert >SNMN120408

Turning Insert

SNMN120408 EDP:10650356

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC5115
ANSI SNMN432
Sales unit 10
Hand N
Stock
Unit of Length M

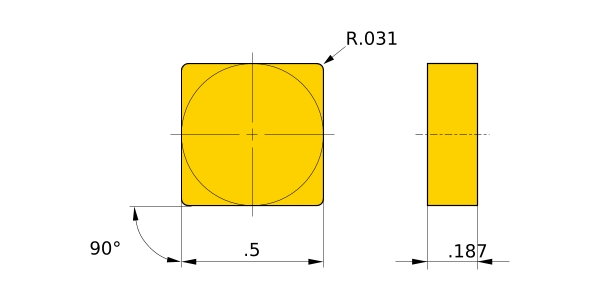

IC 12.7
EPSR 90°
S 4.76
RE 0.8
Breaker flat_top
Classification of Grades
Coated・Carbide MC5005
Coated・Carbide MC5015
Coated・Carbide MC5020
Coated・Carbide MC5105
Coated・Carbide MC5125
Non-coated・Cermet NX2525
Non-coated・Carbide HTi10
Non-coated・Carbide UTi20T
3D Detail Model (STP,STL)
CAD data name Download
SN120408N
CAD
