Turning Insert >CCMT120408-MW

Turning Insert

CCMT120408-MW EDP:23030824

Product Information

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade MC6125
ANSI CCMT432MW
Sales unit 10
Hand N
Stock
Unit of Length M

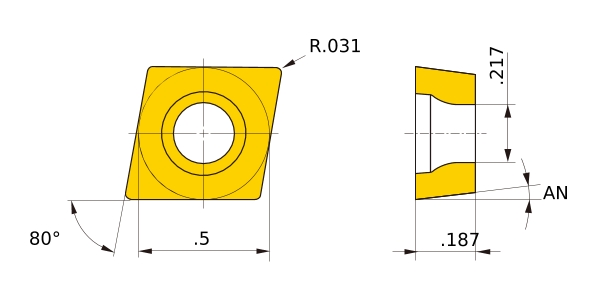

D1 5.5
IC 12.7
EPSR 80°
AN 7°
S 4.76
RE 0.8
Breaker MW
Classification of Grades
Coated・Carbide MC6015
Coated・Carbide MC6025
Coated・Carbide MC6115
Coated・Cermet VP25N
Non-coated・Cermet NX2525
3D Detail Model (STP,STL)
CAD data name Download
CC120408N
