Mandrinado >M-FSWUP_INCH >M-FSWUPL-102-C

Mandrinado

M-FSWUP_INCH
（Dimple Bar）

M-FSWUPL-102-C EDP:307483

Información sobre productos

  • El diámetro mínimo de corte es de 390 pulgadas.
  • Placa positiva, 5°, 11°.
  • Optimización de la evacuación de las virutas gracias a dos canales especiales.
  • Excelente resistencia a la vibración debido a su cabeza dimple ligera.
  • l/d es de 3 a 6 veces el diámetro.

The actual product may differ from the displayed image.

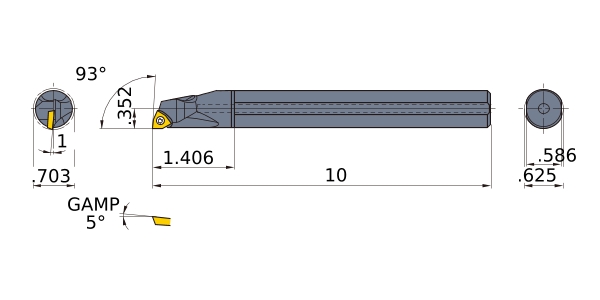

For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI JX10S-SWUPL2
N.º de unidades de pedido 1
Mano L
Existencia
Unidad de longitud I
DMIN .703
DCON .625
KAPR 93°
LF 10
LDRED 1.406
WF .352
H .586
GAMF 1
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insertar número WP__21.5
Modelo 2D (DXF)
Nombre datos CAD Descargar
M-FSWUPL-102-C
CAD
