Fresas >APX3000_INCH >APX3000UR102FA10SA

Fresas

APX3000_INCH


APX3000UR102FA10SA EDP:504268


Forma Serie Geometría Ficha de herramientas Tipo de fresa Característica Estructura
APX3000 Acabado en escuadra (con agujero en el centro)
  • Estándar
  • Longitud larga
  • Longitud extra-larga
  • Fijación por tornillo
  • Placa positiva de baja resistencia de 11°.
  • Pared vertical de alta calidad y gran precisión.
 Con placa intercambiable
APX3000_LONG Acabado en escuadra (longitud larga con agujero en el centro)
  • Filo de corte largo
  • Placa positiva de baja resistencia de 11°.
  • Pared vertical de alta calidad y gran precisión.
 Con placa intercambiable
APX3000_SHELL_MM Acabado en escuadra (longitud larga con agujero en el centro)
  • Casquillo
  • Placa positiva de baja resistencia de 11°.
  • Pared vertical de alta calidad y gran precisión.
 Con placa intercambiable

Información sobre productos

  • Placa positiva de baja resistencia de 11°.
  • Pared vertical de alta calidad y gran precisión.

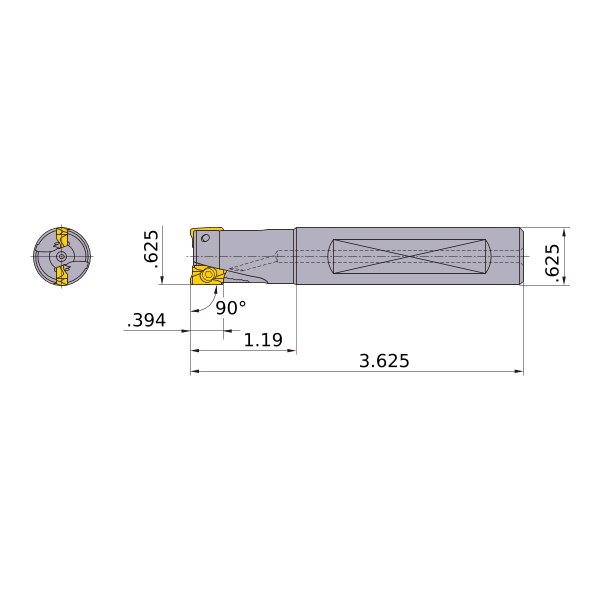

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
DC .625
DCON .625
KAPR 90°
RMPX 11.5
LF 3.625
LH 1.19
APMX .394
GAMP +12°
GAMF +22°
Cutting item count: CICT 2
Peripheral effective cutting edge count: ZEFP 2
