Fresas >LER_INCH >LER2008W20

Fresas

LER_INCH


LER2008W20 EDP:102647

Información sobre productos

  • Los ángulos de hélice helicoidales variables impiden la vibración.
  • Apto para corte pesado gracias a la rigidez del portaherramientas.

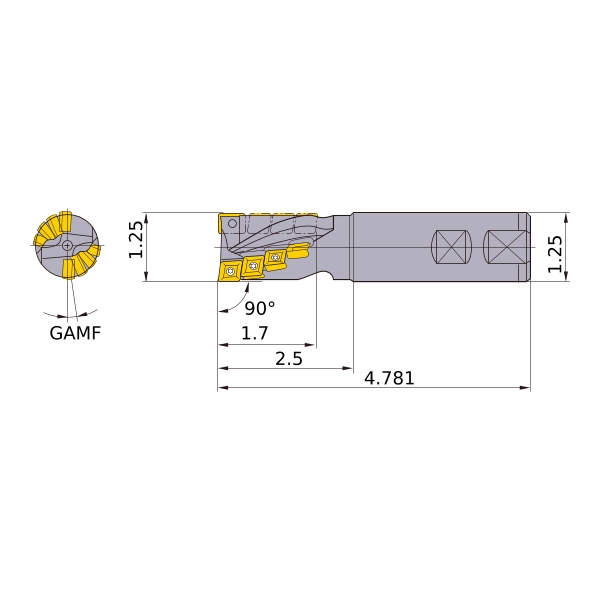

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
DC 1.25
DCON 1.25
KAPR 90°
LF 4.781
LH 2.5
APMX 1.7
Cutting item count: CICT 8
Peripheral effective cutting edge count: ZEFP 2
