Fresas >APX4000_LONG_INCH >APX4KUR3218WA32M53A

Fresas

APX4000_LONG_INCH
（Para corte profundo）

APX4KUR3218WA32M53A EDP:544083


Forma Serie Geometría Ficha de herramientas Tipo de fresa Característica Estructura
APX4000 Acabado en escuadra (con agujero en el centro)
  • Estándar
  • Longitud larga
  • Longitud extra-larga
  • Fijación por tornillo
  • Profundidad máx. de corte 15 mm
  • Pared vertical de alta calidad y gran precisión.
  • Refrigerado por aire.
  • Placa positiva de baja resistencia de 15°.
 Con placa intercambiable
APX4000_LONG Acabado en escuadra (longitud larga con agujero en el centro)
  • Filo de corte largo
  • Refrigerado por aire.
  • Placa positiva de baja resistencia de 15°.
  • Pared vertical de alta calidad y gran precisión.
 Con placa intercambiable
APX4000_SHELL Acabado en escuadra (longitud larga con agujero en el centro)
  • Casquillo
  • Pared vertical de alta calidad y gran precisión.
  • Placa positiva de baja resistencia de 15°.
  • Refrigerado por aire.
 Con placa intercambiable
APX4000_SHELL_MM Acabado en escuadra (longitud larga con agujero en el centro)
  • Casquillo
  • Placa positiva de baja resistencia de 15°.
  • Pared vertical de alta calidad y gran precisión.
  • Refrigerado por aire.
 Con placa intercambiable

Información sobre productos

  • Control perfecto de virutas.
  • Se puede conseguir una alta precisión utilizando esta fresa y la geometría de placa exclusiva.
  • Refrigerado por aire.
  • Placa de baja resistencia y cuerpo de alta rigidez.

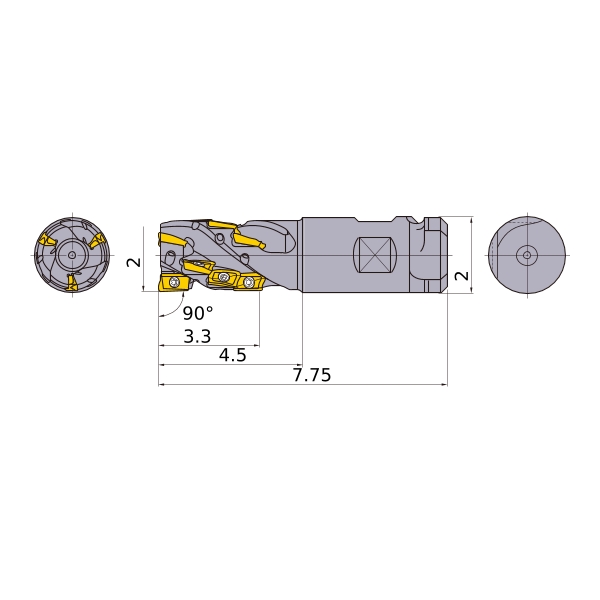

The actual product may differ from the displayed image.
For details, please check the dimensions below.

Tipo   [Extendido ]

Tipo   [Extendido ]

Diámetro (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
N.º de unidades de pedido 1
Mano R
Existencia
Unidad de longitud I
DC 2
DCON 2
KAPR 90°
LF 7.75
LH 4.5
APMX 3.3
GAMP +12°
GAMF +7°
Cutting item count: CICT 18
Peripheral effective cutting edge count: ZEFP 3
