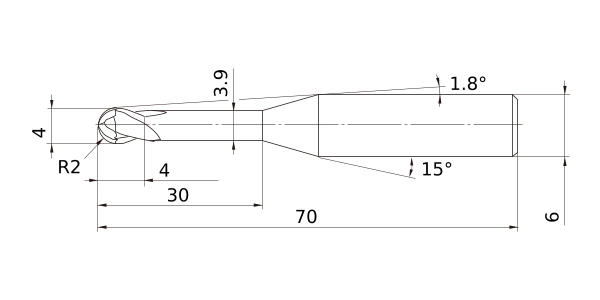

CRN2XLB
（Ball nose, Long neck, 2 flute, For copper electrodes）
CRN2XLBR0200N300S06 EDP:10220900
Product Information
| Diameter (Unit) | |
|---|---|
| Sales unit | 1 |
| Unit of Length | M |
| DC | 4 |
| DCON | 6 |
| DN | 3.9 |
| B2 | 1.8° |
| BHTA2 | 15° |
| LF | 70 |
| LU | 30 |
| APMX | 4 |
| FHA | 30° |
| RE | 2 |
| Peripheral effective cutting edge count: ZEFP | 2 |
| R Tolerance - | -0.01 |
| R Tolerance + | 0.01 |
| Max. Cutting EdgeDiameter Tolerance | 0 |
| Min. Cutting EdgeDiameter Tolerance | -0.02 |
| Coated | CRN |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
