MDPN_INCH
MDPNN-164D EDP:102897
Product Information
- Negative rake clamp and locking pin toolholders.
- Insert securely held by a shim pin and clamp bridge.
- Index operation is easy to perform.
- (Opt.) Single clamp available as clamp on or pin lock holder.

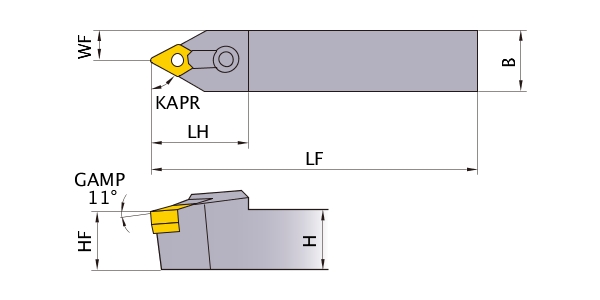

| Diameter (Unit) | |
|---|---|
| ANSI | MDPNN164D |
| Sales unit | 1 |
| Hand | N |
| Stock |
|
| Unit of Length | I |

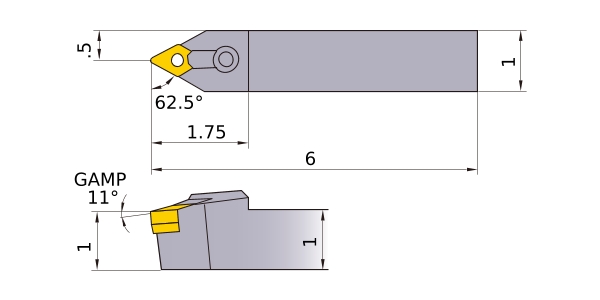

| B | 1 |
| KAPR | 62.5° |
| LF | 6 |
| LH | 1.75 |
| WF | .5 |
| H | 1 |
| HF | 1 |
| Peripheral effective cutting edge count: ZEFP | 1 |
| Insert Number | DN__43 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
-
