MSRNL-205D EDP:103197

Product Information

Negative rake clamp and locking pin toolholders.
Insert securely held by a shim pin and clamp bridge.
Index operation is easy to perform.
(Opt.) Single clamp available as clamp on or pin lock holder.

Type [Outspread ]

Type [Outspread ]

Diameter ()

Metric	Inch
mm	in
microns *	microinches *
N	lbf
deg	deg
MPa	psi
N/m	lbf/in
Nm	lbf-in
kg	lbs
rpm	rpm

ANSI

MSRNL205D

Sales unit

1

Hand

L

Stock

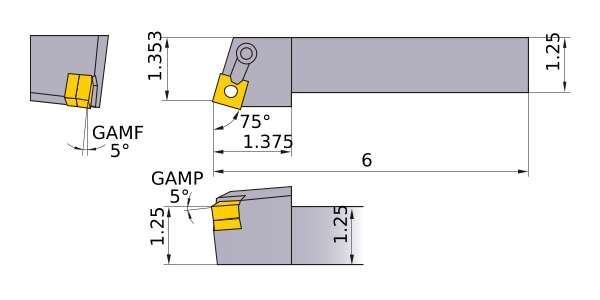

Unit of Length

I

B

1.25

KAPR

75°

LF

6

LH

1.375

WF

1.353

H

1.25

HF

1.25

Peripheral effective cutting edge count: ZEFP

1

Insert Number

SN__53
