MSRN_INCH
MSRNL-83 EDP:103203
Product Information
- Negative rake clamp and locking pin toolholders.
- Insert securely held by a shim pin and clamp bridge.
- Index operation is easy to perform.
- (Opt.) Single clamp available as clamp on or pin lock holder.

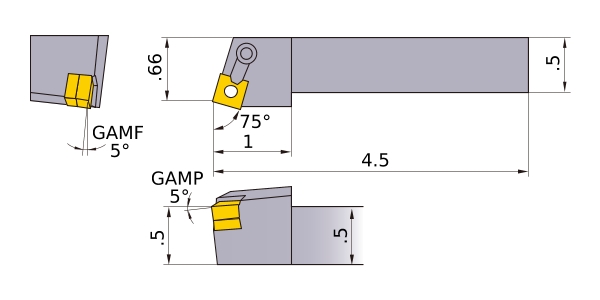

| Diameter (Unit) | |
|---|---|
| ANSI | MSRNL083B |
| Sales unit | 1 |
| Hand | L |
| Stock |
|
| Unit of Length | I |
| B | .5 |
| KAPR | 75° |
| LF | 4.5 |
| LH | 1 |
| WF | .66 |
| H | .5 |
| HF | .5 |
| Peripheral effective cutting edge count: ZEFP | 1 |
| Insert Number | SN__32 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
-
Recommended Cutting Condition
