S-MDUN_INCH


S-MDUNR-285 EDP:104370

Product Information

  • Two wall pocket.
  • Pin lock and top clamp retention.
  • (Opt.) Single clamp available as clamp on or pin lock holder.
  • Negative rake.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S28U-MDUNR5
Sales unit 1
Hand R
Stock
Unit of Length I

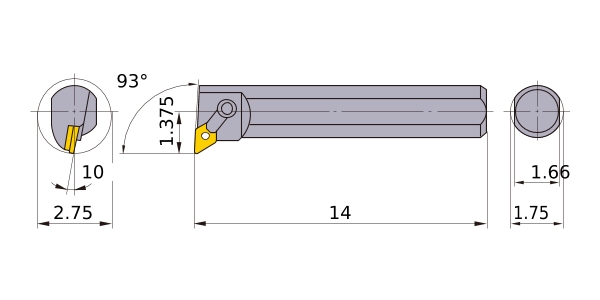

DMIN 2.75
DCON 1.75
KAPR 93°
LF 14
WF 1.375
H 1.66
GAMF 10
Peripheral effective cutting edge count: ZEFP 1
Insert Number DN__54
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
