S-MTFN_INCH


S-MTFNR-324 EDP:104403

Product Information

  • Negative rake.
  • Two wall pocket.
  • Pin lock and top clamp retention.
  • (Opt.) Single clamp available as clamp on or pin lock holder.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
ANSI S32V-MTFNR4
Sales unit 1
Hand R
Stock

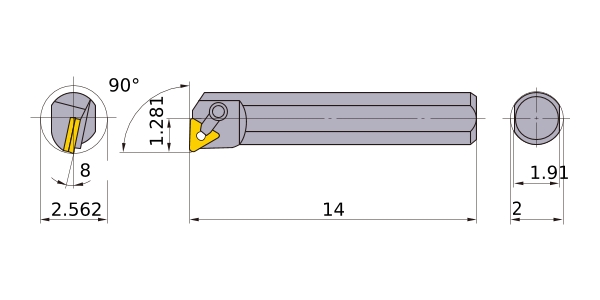

Unit of Length I
DMIN 2.562
DCON 2
KAPR 90°
LF 14
WF 1.281
H 1.91
GAMF 8
Peripheral effective cutting edge count: ZEFP 1
Insert Number TN__43
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
