S-SDQC_INCH


S-SDQCR-082 EDP:104437

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S08M-SDQCR2
Sales unit 1
Hand R
Stock

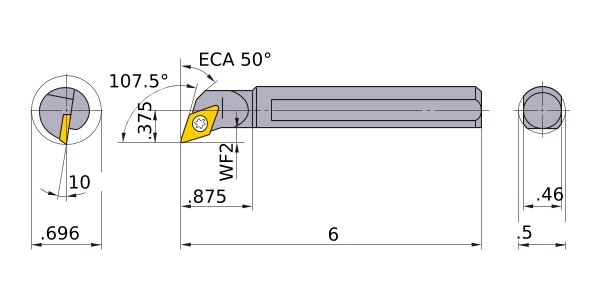

Unit of Length I
DMIN .696
DCON .5
KAPR 107.5°
LF 6
LDRED .875
WF .375
H .46
GAMF 10
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__21.5
2D Model (DXF)
CAD data name Download
S-SDQCR-082
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-SDQCR-082
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-SDQCR-082_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
