S-STUC_INCH


S-STUCL-102 EDP:104472

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S10R-STUCL2
Sales unit 1
Hand L
Stock
Unit of Length I

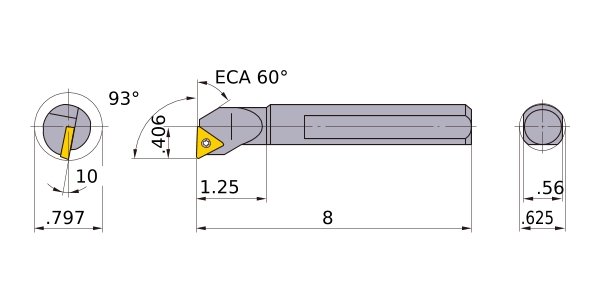

DMIN .797
DCON .625
KAPR 93°
LF 8
LDRED 1.25
WF .406
H .56
GAMF 10
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TC__21.5
2D Model (DXF)
CAD data name Download
S-STUCL-102
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-STUCL-102
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-STUCL-102_MR0_4
0.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
