S-STUC_INCH


S-STUCR-062 EDP:104476

Product Information

  • Two wall pocket.
  • 7° positive insert, low cutting force.
  • Screw-on type

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI S06M-STUCR2
Sales unit 1
Hand R
Stock
Unit of Length I

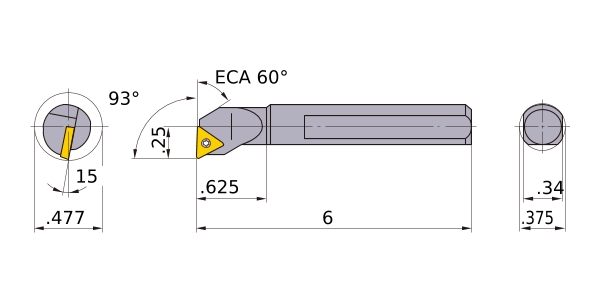

DMIN .477
DCON .375
KAPR 93°
LF 6
LDRED .625
WF .25
H .34
GAMF 15
RE .016
Peripheral effective cutting edge count: ZEFP 1
Insert Number TC__21.5
2D Model (DXF)
CAD data name Download
S-STUCR-062
CAD

3D Detail Model (STP,STL)
CAD data name Download
S-STUCR-062
CAD

3D Light Model (STP,STL)
CAD data name RE Download
S-STUCR-062_MR0_4
0.4 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
