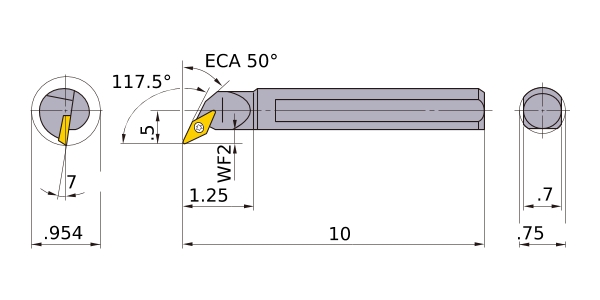

S-SVQC_INCH
| Diameter (Unit) | |
|---|---|
| ANSI | S12S-SVQCL2 |
| Sales unit | 1 |
| Hand | L |
| Stock |
|
| Unit of Length | I |
| DMIN | .954 |
| DCON | .75 |
| KAPR | 117.5° |
| LF | 10 |
| LDRED | 1.25 |
| WF | .5 |
| H | .7 |
| GAMF | 7 |
| RE | .016 |
| Peripheral effective cutting edge count: ZEFP | 1 |
| Insert Number | VC__22 |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
