SCLC_INCH


SCLCL-104 EDP:104520

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI SCLCL104A
Sales unit 1
Hand L
Stock

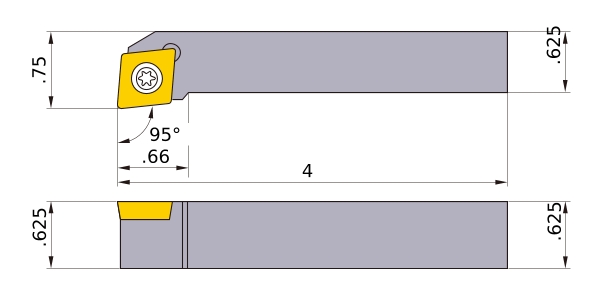

Unit of Length I
B .625
KAPR 95°
LF 4
LH .66
WF .75
H .625
HF .625
Peripheral effective cutting edge count: ZEFP 1
Insert Number CC__43
2D Model (DXF)
CAD data name Download
SCLCL-104
CAD

3D Detail Model (STP,STL)
CAD data name Download
SCLCL-104
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SCLCL-104_MR0_8
0.8 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
