SDJC_INCH


SDJCL-062 EDP:104585

Product Information

  • Small shank toolholder system using a 5° , 7° and 11° positive inserts retained by screw-on system.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
ANSI SDJCL062X
Sales unit 1
Hand L
Stock

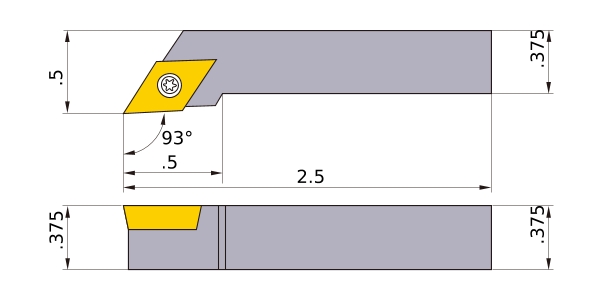

Unit of Length I
B .375
KAPR 93°
LF 2.5
LH .5
WF .5
H .375
HF .375
Peripheral effective cutting edge count: ZEFP 1
Insert Number DC__21.5
2D Model (DXF)
CAD data name Download
SDJCL-062
CAD

3D Detail Model (STP,STL)
CAD data name Download
SDJCL-062
CAD

3D Light Model (STP,STL)
CAD data name RE Download
SDJCL-062_IR0_016
.016 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
