MP2SB
(Ball nose, Short cut length, 2 flute)

MP2SBR0125 EDP:10482308

Product Information

  • 2-flute ball nose end mills with short cutting edge length for general use. Excellent performance for a wide range of workpiece materials such as carbon steel, alloy steel and hardened steel.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Stock
Unit of Length M

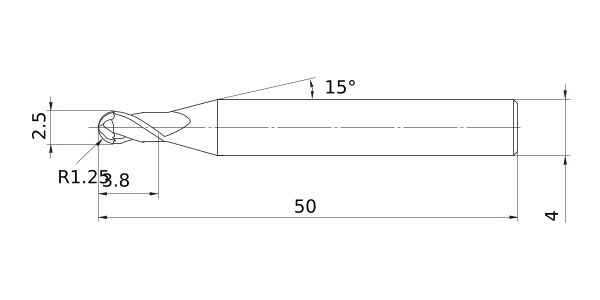

DC 2.5
DCON 4
BHTA2 15°
LF 50
APMX 3.8
FHA 30°
RE 1.25
Peripheral effective cutting edge count: ZEFP 2
R Tolerance - -0.005
R Tolerance + 0.005
Coated MS+
2D Model (DXF)
CAD data name Download
MP2SBR0125
CAD

3D Light Model (STP,STL)
CAD data name Download
MP2SBR0125
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
