GYQR2020K00-F18 EDP:10500613

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

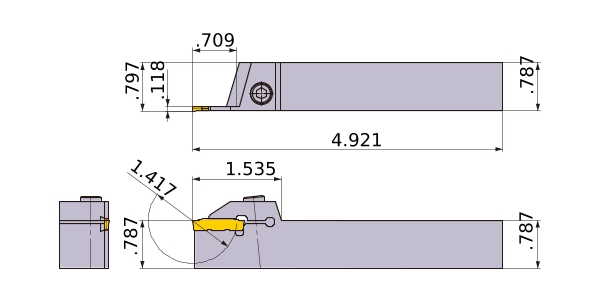

Unit of Length I
CUTDIA 1.417
B .787
LF 4.921
LH 1.535
CDX .709
WF .797
H .787
HF .787
CW .118
2D Model (DXF)
CAD data name Download
GYQR2020K00-F18
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYQR2020K00-F18
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYQR2020K00-F18_CW3_00_N_MR0_2
0.2 CAD
GYQR2020K00-F18_CW3_00_N_MR1_5
1.5 CAD
GYQR2020K00-F18_CW3_18_N_MR0_2
0.2 CAD
GYQR2020K00-F18_CW3_18_N_MR1_5
1.5 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
