GYQR2020K00-G25 EDP:10500651

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I

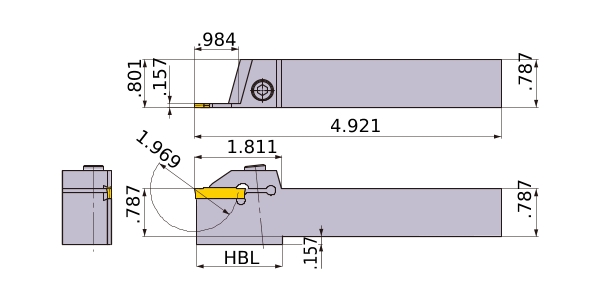

CUTDIA 1.969
B .787
LF 4.921
LH 1.811
CDX .984
WF .801
H .787
HF .787
HBH .157
CW .157
2D Model (DXF)
CAD data name Download
GYQR2020K00-G25
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYQR2020K00-G25
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYQR2020K00-G25_CW4_00_MR0_2
0.2 CAD
GYQR2020K00-G25_CW4_00_MR2_0
2 CAD
GYQR2020K00-G25_CW4_00_N_MR0_2
0.2 CAD
GYQR2020K00-G25_CW4_00_N_MR2_0
2 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
