GYQR2020K00-H25 EDP:10500699

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock
Unit of Length I

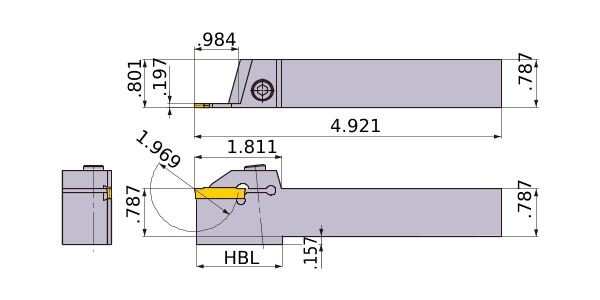

CUTDIA 1.969
B .787
LF 4.921
LH 1.811
CDX .984
WF .801
H .787
HF .787
HBH .157
CW .197
2D Model (DXF)
CAD data name Download
GYQR2020K00-H25
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYQR2020K00-H25
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYQR2020K00-H25_CW4_75_MR0_4
0.4 CAD
GYQR2020K00-H25_CW4_75_MR2_38
2.38 CAD
GYQR2020K00-H25_CW4_75_N_MR0_4
0.4 CAD
GYQR2020K00-H25_CW4_75_N_MR2_38
2.38 CAD
GYQR2020K00-H25_CW5_00_MR0_4
0.4 CAD
GYQR2020K00-H25_CW5_00_MR2_5
2.5 CAD
GYQR2020K00-H25_CW5_00_N_MR0_4
0.4 CAD
GYQR2020K00-H25_CW5_00_N_MR2_5
2.5 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
