GYQL2525M00-D20 EDP:10500781

Product Information

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand L
Stock

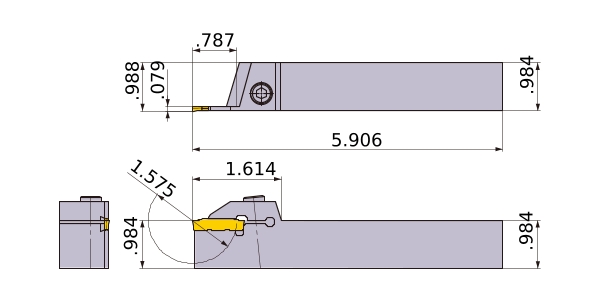

Unit of Length I

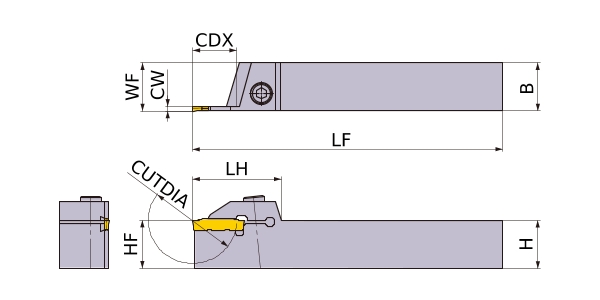

CUTDIA 1.575
B .984
LF 5.906
LH 1.614
CDX .787
WF .988
H .984
HF .984
CW .079
2D Model (DXF)
CAD data name Download
GYQL2525M00-D20
CAD

3D Detail Model (STP,STL)
CAD data name Download
GYQL2525M00-D20
CAD

3D Light Model (STP,STL)
CAD data name RE Download
GYQL2525M00-D20_CW2_00_N_MR0_2
0.2 CAD
GYQL2525M00-D20_CW2_00_N_MR1_0
1 CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
