| Diameter (Unit) | |
|---|---|
| Sales unit | 1 |
| Hand | L |
| Stock |
|
| Unit of Length | I |

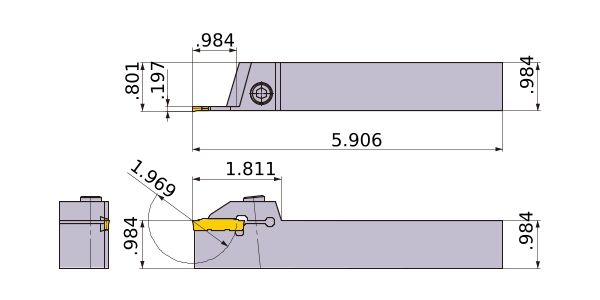

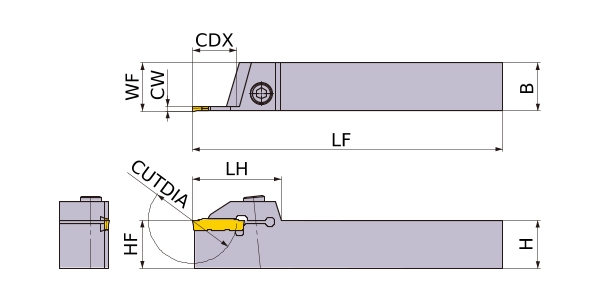

| CUTDIA | 1.969 |
| B | .984 |
| LF | 5.906 |
| LH | 1.811 |
| CDX | .984 |
| WF | .801 |
| H | .984 |
| HF | .984 |
| CW | .197 |
| 2D Model (DXF) | |
|---|---|
| CAD data name | Download |
|
GYQL2525M00-H25
|
|
| 3D Detail Model (STP,STL) | |
|---|---|
| CAD data name | Download |
|
GYQL2525M00-H25
|
|
| 3D Light Model (STP,STL) | ||
|---|---|---|
| CAD data name | RE | Download |
|
GYQL2525M00-H25_CW4_75_N_MR0_4
|
0.4 |
|
|
GYQL2525M00-H25_CW4_75_N_MR2_38
|
2.38 |
|
|
GYQL2525M00-H25_CW5_00_N_MR0_4
|
0.4 |
|
|
GYQL2525M00-H25_CW5_00_N_MR2_5
|
2.5 |
|
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
