AJX_INCH
(MULTI FUNCTIONAL MILLING)

AJXU08R183AM1235 EDP:10533000

Product Information

  • Economical due to the use of 3 cutting edges.
  • High rigidity due to the employment of double clamp mechanics.
  • Suitable for high feed cutting.
  • Air coolant through.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Sales unit 1
Hand R
Stock

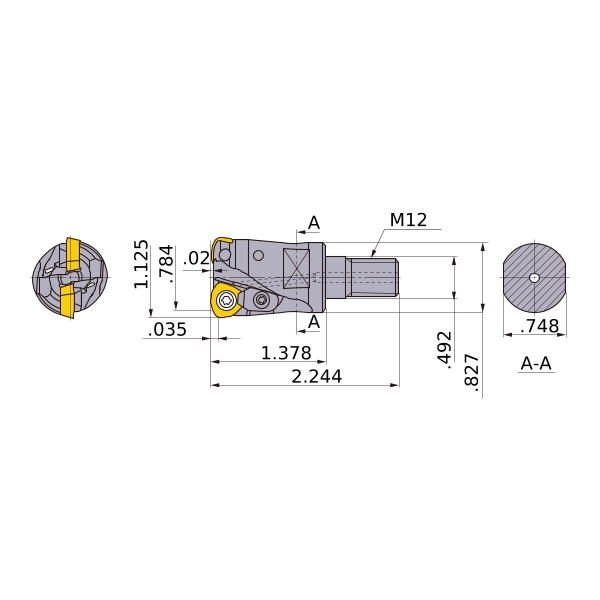

Unit of Length I
AZ .02
DC .784
DCX 1.125
DCON .492
DCSFMS .827
LF 1.378
OAL 2.244
S10 .748
APMX .035
GAMP +4°
GAMF -5°
WT 0.2
CRKS M12
Cutting item count: CICT 3
Peripheral effective cutting edge count: ZEFP 3
2D Model (DXF)
CAD data name Download
AJXU08R183AM1235
CAD

3D Detail Model (STP,STL)
CAD data name Download
AJXU08R183AM1235
CAD

3D Light Model (STP,STL)
CAD data name RE Download
AJXU08R183AM1235_IR0_079
.079 CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
