MVS
(WSTAR)

MVS0780X15S080 EDP:10541487

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

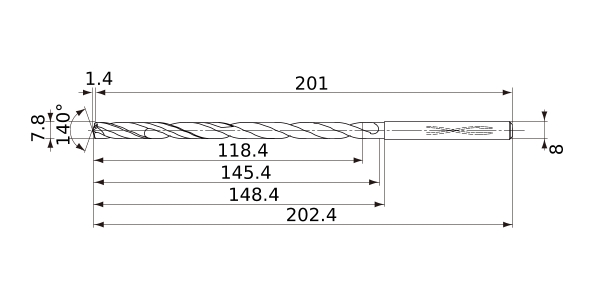

DC 7.8
DCON 8
SIG 140°
LF 201
OAL 202.4
LH 148.4
LU 118.4
LCF 145.4
FHA 27°
ld 15
PL 1.4
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -0.033
Min. Cutting EdgeDiameter Tolerance -0.055
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0780X15S080
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS0780X15S080
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
