MVS0953X35S100 EDP:10546598

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length I

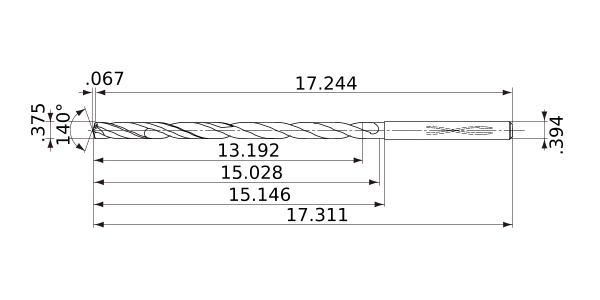

DC .375
DCON .394
SIG 140°
LF 17.244
OAL 17.311
LH 15.146
LU 13.192
LCF 15.028
FHA 27°
ld 35
PL .067
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -.013
Min. Cutting EdgeDiameter Tolerance -.0022
Type of Coolant Internal
