MVS
(WSTAR)

MVS0550X40S060 EDP:10547151

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

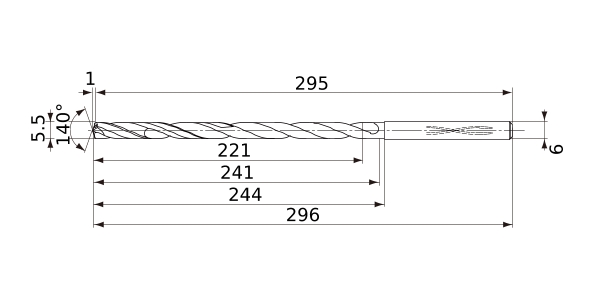

DC 5.5
DCON 6
SIG 140°
LF 295
OAL 296
LH 244
LU 221
LCF 241
FHA 27°
ld 40
PL 1
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -0.025
Min. Cutting EdgeDiameter Tolerance -0.043
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0550X40S060
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS0550X40S060
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
