MVS
(WSTAR)

MVS1000X35S100 EDP:10547434

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

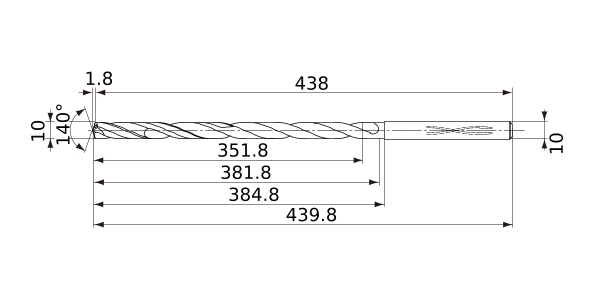

DC 10
DCON 10
SIG 140°
LF 438
OAL 439.8
LH 384.8
LU 351.8
LCF 381.8
FHA 27°
ld 35
PL 1.8
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -0.033
Min. Cutting EdgeDiameter Tolerance -0.055
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS1000X35S100
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS1000X35S100
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
