MVS
(WSTAR)
| Diameter (Unit) | |
|---|---|
| Name of Grade | Carbide |
| Grade | DP1020 |
| Sales unit | 1 |
| Stock |
|
| Unit of Length | M |

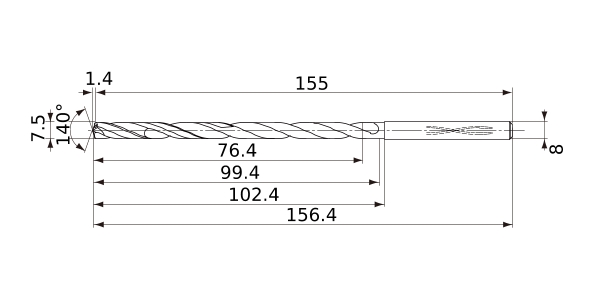

| DC | 7.5 |
| DCON | 8 |
| SIG | 140° |
| LF | 155 |
| OAL | 156.4 |
| LH | 102.4 |
| LU | 76.4 |
| LCF | 99.4 |
| FHA | 27° |
| ld | 10 |
| PL | 1.4 |
| Effective Cutting Edge | 2 |
| Max. Cutting EdgeDiameter Tolerance | -0.033 |
| Min. Cutting EdgeDiameter Tolerance | -0.055 |
| Type of Coolant | Internal |
Stock
:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
Recommended Cutting Condition
