MVS
(WSTAR)

MVS0630X10S070 EDP:10549599

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

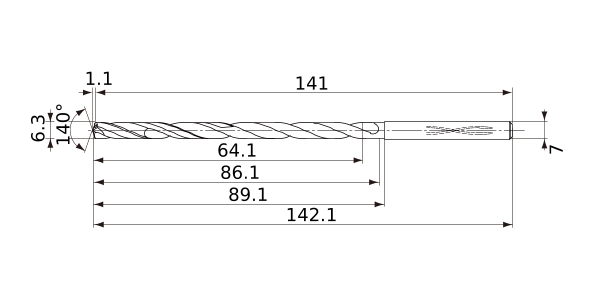

DC 6.3
DCON 7
SIG 140°
LF 141
OAL 142.1
LH 89.1
LU 64.1
LCF 86.1
FHA 27°
ld 10
PL 1.1
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -0.033
Min. Cutting EdgeDiameter Tolerance -0.055
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0630X10S070
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS0630X10S070
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
