PILOT-MVS
(WSTAR)

MVS0900X02S100PL EDP:10554418

Product Information

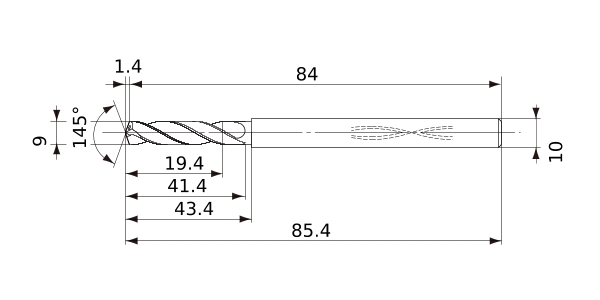

  • Straight cutting edge profile improves both chip evacuation and cutting edge strength.
  • Double margin offers excellent straightness and high precision.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M
DC 9
DCON 10
SIG 145°
LF 84
OAL 85.4
LH 43.4
LU 19.4
LCF 41.4
FHA 27°
ld 2
PL 1.4
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.022
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0900X02S100PL
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS0900X02S100PL
CAD CAD
