PILOT-MVS
(WSTAR)

MVS1250X02S140PL EDP:10554562

Product Information

  • Straight cutting edge profile improves both chip evacuation and cutting edge strength.
  • Double margin offers excellent straightness and high precision.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

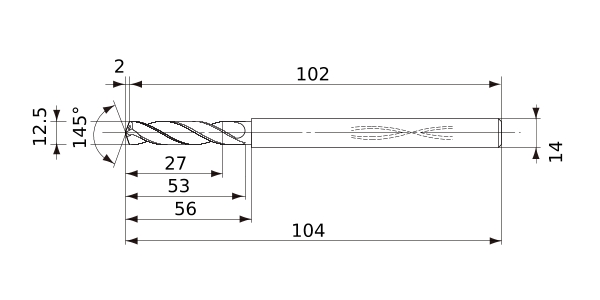

DC 12.5
DCON 14
SIG 145°
LF 102
OAL 104
LH 56
LU 27
LCF 53
FHA 27°
ld 2
PL 2
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS1250X02S140PL
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS1250X02S140PL
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
