PILOT-MVS
(WSTAR)

MVS0390X02S040PL EDP:10555514

Product Information

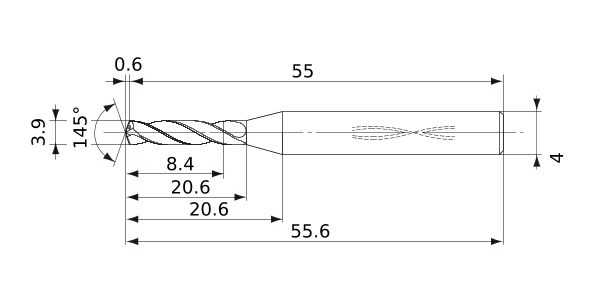

  • Straight cutting edge profile improves both chip evacuation and cutting edge strength.
  • Double margin offers excellent straightness and high precision.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M
DC 3.9
DCON 4
SIG 145°
LF 55
OAL 55.6
LH 20.6
LU 8.4
LCF 20.6
FHA 27°
ld 2
PL 0.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.018
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0390X02S040PL
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS0390X02S040PL
CAD CAD
