PILOT-MVS
(WSTAR)

MVS1160X02S120PL EDP:10556283

Product Information

  • Straight cutting edge profile improves both chip evacuation and cutting edge strength.
  • Double margin offers excellent straightness and high precision.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

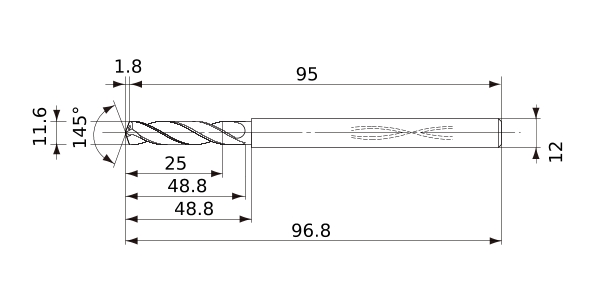

DC 11.6
DCON 12
SIG 145°
LF 95
OAL 96.8
LH 48.8
LU 25
LCF 48.8
FHA 27°
ld 2
PL 1.8
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS1160X02S120PL
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS1160X02S120PL
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
