PILOT-MVS
(WSTAR)

MVS1310X02S140PL EDP:10556436

Product Information

  • Straight cutting edge profile improves both chip evacuation and cutting edge strength.
  • Double margin offers excellent straightness and high precision.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

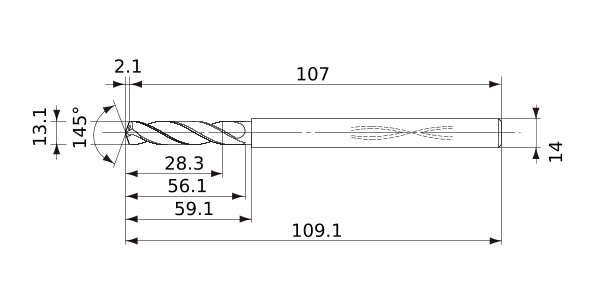

DC 13.1
DCON 14
SIG 145°
LF 107
OAL 109.1
LH 59.1
LU 28.3
LCF 56.1
FHA 27°
ld 2
PL 2.1
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.027
Type of Coolant Internal
