MVS
(WSTAR)

MVS0860X15S100 EDP:10556870

Product Information

  • New grade DP1020 offers long tool life for a wide range of work materials.
  • Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6)

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Name of Grade Carbide
Grade DP1020
Sales unit 1
Stock
Unit of Length M

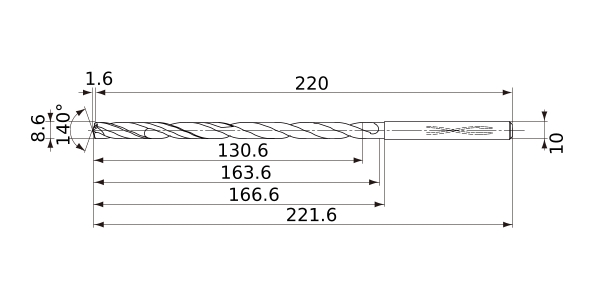

DC 8.6
DCON 10
SIG 140°
LF 220
OAL 221.6
LH 166.6
LU 130.6
LCF 163.6
FHA 27°
ld 15
PL 1.6
Effective Cutting Edge 2
Max. Cutting EdgeDiameter Tolerance -0.033
Min. Cutting EdgeDiameter Tolerance -0.055
Type of Coolant Internal
2D Model (DXF)
CAD data name Download
MVS0860X15S100
CAD

3D Light Model (STP,STL)
CAD data name Download
MVS0860X15S100
CAD CAD

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
