MPMHVRB
（Corner radius, Medium cut length, 4 flute, Irregular helix flutes）

MPMHVRBD0600R010 EDP:10560266

Product Information

  • Irregular pitch design prevents chattering.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Unit of Length M

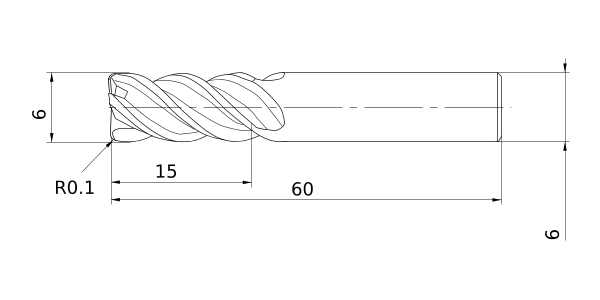

DC 6
DCON 6
LF 60
APMX 15
RE 0.1
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS+
Show more

Stock

:Inventory maintained.
:Non stock, produced to order only.
:Inventory maintained. To be replaced by new products.
:Inventory maintained in Japan.
