MPMHVRB
（Corner radius, Medium cut length, 4 flute, Irregular helix flutes）

MPMHVRBD1000R200 EDP:10560648

Product Information

  • Irregular pitch design prevents chattering.

Type   [Outspread ]

Type   [Outspread ]

Diameter (Unit)
Metric Inch
mm in
microns * microinches *
N lbf
deg deg
MPa psi
N/m lbf/in
Nm lbf-in
kg lbs
rpm rpm

* Only ADJAR,ADJRR
Sales unit 1
Unit of Length M

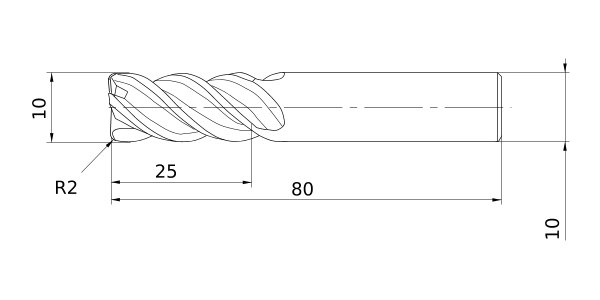

DC 10
DCON 10
LF 80
APMX 25
RE 2
Peripheral effective cutting edge count: ZEFP 4
Max. Cutting EdgeDiameter Tolerance 0
Min. Cutting EdgeDiameter Tolerance -0.02
Coated MS+
